Used US Radar Subsurface Imager Triple Frequency GPR System with Panasonic FZ-G1 Tablet

The Quantum Imager is the first true triple frequency range GPR system ever produced. The antenna emits three separate signals simultaneously, allowing the user to survey significantly greater depths with higher resolution than any other locating technology without sacrificing middle frequencies which are ideal for locating targets like buried utilities. Stepped ultra wideband pulses combine the advantages of pulse radar and stepped frequency radar for unsurpassed resolution and depth.

The Quantum Imager is the first true triple frequency range GPR system ever produced. Because the antenna emits three separate signals simultaneously, the user can survey significantly greater depths with higher resolution than any other locating technology without sacrificing middle frequencies which are ideal for locating targets like buried utilities. Stepped ultra wideband pulses combine the advantages of pulse radar and stepped frequency radar for unsurpassed resolution and depth. New direct RF sampling technology creates clearer, easier to understand images than previously possible with older radar technologies. All these components work together to make locating easier while providing superior results.

The Triple frequency Quantum Imager by US Radar is capable of significantly greater depths with higher resolution than any other locating technology. Stepped Ultra Wideband Pulses combine the advantages of pulse radar and stepped frequency radar to offer unsurpassed resolution & depth. New Direct RF sampling technology creates clearer, easier to understand images than previously possible with older radar technologies. All these technologies work transparently behind the scenes to make locating easier.

FEATURES

STEPPED PULSE TRIPLE FREQUENCY ANTENNA

Triple frequency antenna means three scans in one
Sloped antenna design easily glides over obstacles
Optional GPS integration

DURABLE, GLARE-RESISTANT TABLET INTERFACE

Daylight readable, weatherproof Getac tablet interface
High performance CPU enables real-time data processing
Built-in 3D view capability
WiFi supported
USB, Ethernet, HDMI and Audio ports

HOT SWAPPABLE BATTERY PACKS

Two hot-swappable battery packs included in each system
Each battery lasts a total runtime of 8 hours each
Battery packs have lifespan of several years

GPS INTEGRATION (Optional)

Optional GPS Pole mount
Enables GPS to be centered over antenna
Integrates with most high-end GIS and RTK units
Optional integration with Google Earth

AIRLESS TIRES

Airless, solid tires that cannot go flat
Require no maintenance

EASY STORAGE

Folding cart handle and controller tablet mount for easy storage.

WHY TRIPLE FREQUENCY?

Quantum Imager offers dramatically more depth and higher resolution than any other imaging technology on the market. This is due to the narrow frequency range of dual frequency systems. Dual frequency systems also miss out on the ideal mid frequencies for locating utilities.

SPECIFICATIONS

GETAC F110 RADAR CONTROLLER
OS Windows 7 or 10 64-bit
Processor 3rd Generation Intel Core i5 Pro
Durability 4 foot fall arrester, IP65 certification against water and dust
Screen 11.6 in. HD with 10 points of contact
I/O interface Ethernet Port, Charging Port, 1 USB 3.0, HDMI Port, WIFI and Bluetooth
Expansion Options Micro SD or USB Port, RJ45 Ethernet, Dedicated GPS
Communication Wifi, Bluetooth and 4G LTE Optional

Software
Control Software Included
System configuration
A Screen Scan (Oscilloscope Mode)
B Screen Scan (Cross Section View)
C On-Screen Scan (Optional 3D)
Signal Processing in Real Time
Playback of Stored Information

Scan Modes
Maximum typical log scan rate of 390 traces per second
Trigger Modes: Free Run, Timed Interval, Axis Encoder, GPS, Manual
Nominal sampling rate: 650,000,000 samples per second
Maximum resolution: 100 Gigasamples per second
Hardware Time Variable Gain: 45dB
Software Flat Gain: 60dB

Maximum Environmental Specifications
Temperature: -11 °C to 50 °C
Resistance to Moisture and Dust IP65

Radar Hardware Specifications
Total system dynamic range: >130 dB
Receiver dynamic range: 90 dB
Sampling interval: 10ps-6.4
Time range setting interval: 10 ps
Pulse repetition frequency: 0.1-4 Mhz adjustable
Samples per trace: 2-8192, adjustable
Effective Bandwidth: > 4 Ghz
Stacking: automatic
Transmitter: Ultra Wide Band Stepped Triple Frequency

US Radar

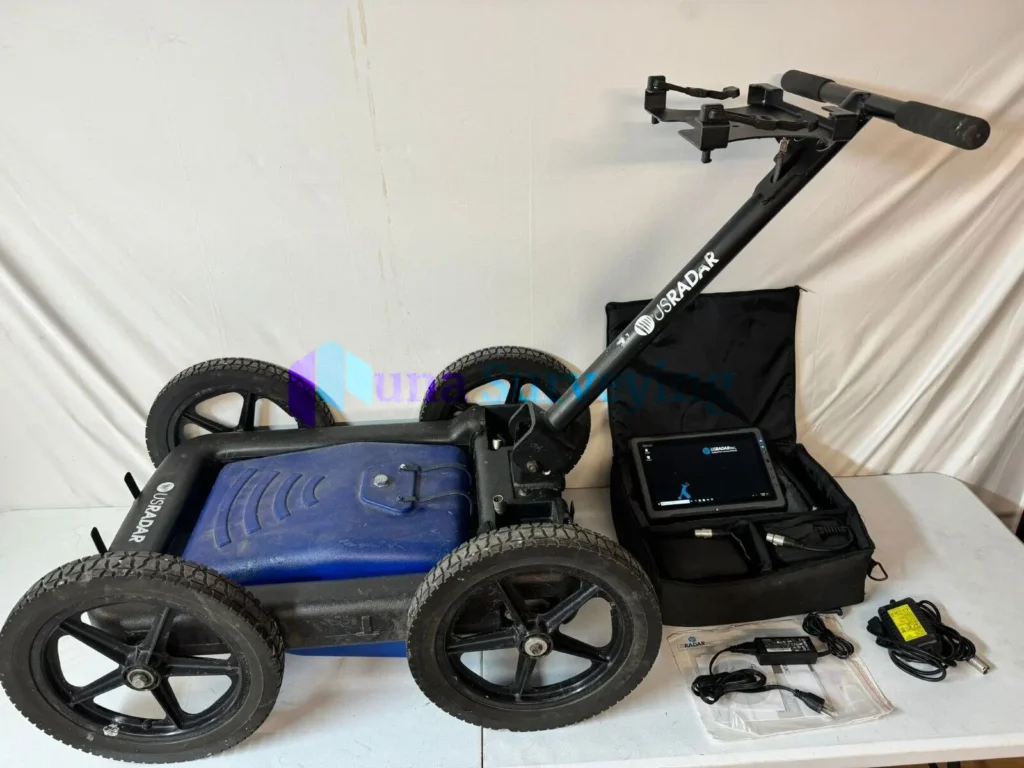

Used US Radar Quantum Imager Triple Frequency GPR
