Description

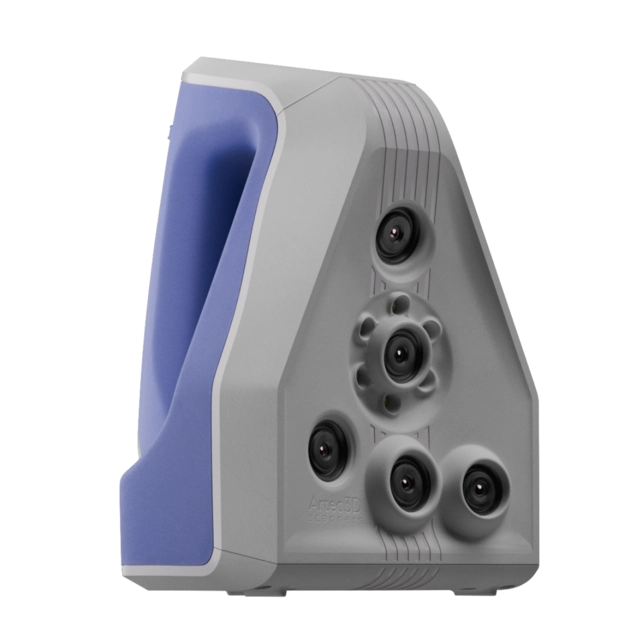

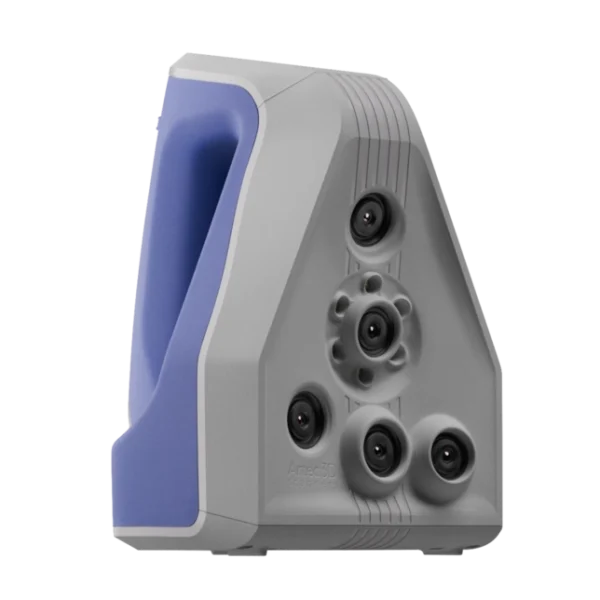

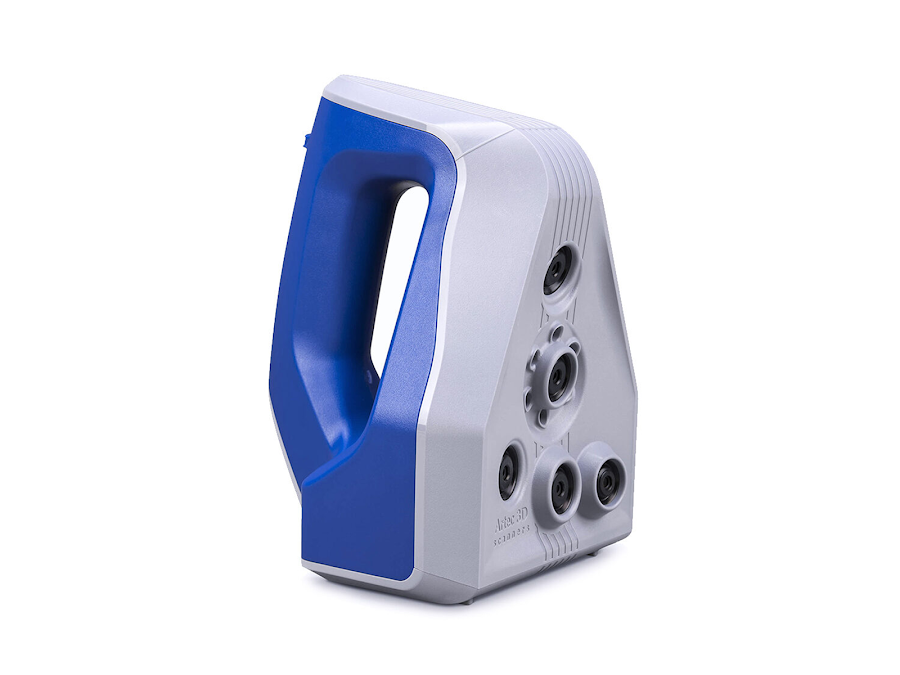

Artec Space Spider 3D Scanner
A new and enhanced precision instrument for CAD users and engineers, Artec Space Spider is a high-resolution 3D scanner based on blue light technology. It is perfect for capturing small objects or intricate details of large industrial objects in high resolution, with steadfast accuracy and brilliant color.
The scanner’s ability to render complex geometry, sharp edges and thin ribs sets our technology apart. It is an ideal industrial 3D scanner for high resolution capturing of objects such as molding parts, PCBs, keys, coins or even a human ear, followed by the export of the final 3D model to CAD software.
In this powerful 3D scanner, the technology has been honed to perfection to ensure the best possible quality of scans and a truly robust device.
The Artec Space Spider is an industrial 3D scanner designed for scanning small objects with high accuracy. This makes it useful for product design, quality control and reverse engineering applications. The temperature stabilization and industrial grade electronics provide long term repeatability. It is fully portable and lightweight, with USB connectivity making it compatible with tablets and laptops, and an optional battery pack for full mobility.
Speed
Capturing 1 million data points a second the Artec Space Spider is capable of scanning small objects with high detail quickly.
Enhanced Accuracy System
Scan points up to 100 microns apart with an accuracy of up to 50 microns to capture intricate details and fine features.
Portability
With only two cables and weighing only 850g, the Space Spider is lightweight and can be moved around freely. The optional battery pack offers full portability.
Strength in Versatility
Due to it’s small size and compact design, the Space Spider can be used for all different kinds of objects, specializing in those on the smaller side.
Long Term Repeatability
Originally developed for the International Space Station, Space Spider features powerful temperature stabilization and high-grade electronics, which allows it to achieve accurate and long-term predictable results in different environmental conditions.
Exceptional Color Capture for CGI, AR, and VR
With up to 1.3-megapixel texture resolution and advanced automatic software tools, including enhanced color reproduction and auto glare removal, Space Spider is the perfect choice for creating vivid color 3D assets ready for movies, games, VR, and AR applications.
Easily Paired with All Artec Scanners
Space Spider can be paired with any scanner in the Artec family. Combine it with Eva, Leo, or Ray to scan very small, intricate details of medium to large surface areas.
- Access 3D data from anywhere with Artec Cloud
- Work with 3D data on your browser
- View, collaborate, and process on the go
- Stay connected when working remotely
Specifications
| Space Spider | Leo | Eva | Eva LIte | Micro II | |
| Scanner Type | Handheld | Handheld | Handheld | Handheld | Desktop |
| 3D Point Accuracy, up to | 0,05 mm | 0.1 mm | 0.1 mm | 0.1 mm | 0,005 mm |
| 3D Resolution, up to | 0,01 mm | 0.2 mm | 0.2 mm | 0,5 mm | 40 microns |
| 3D Accuracy over distance, up to | 0.05 mm + 0.3 mm/m | 0.01 mm + 0.3 mm/m | 0.01 mm + 0.3 mm/m | 0.01 mm + 0.3 mm/m | – |
| HD Mode | N/A | Yes | Yes | No | N/A |
| Hybrid Geometry and Texture Tracking | Yes | Yes | Yes | No | Yes |
| Data Processing Algorithms | Geometry and texture based | Geometry and texture based | Geometry and texture based | Geometry based | Geometry and texture based |
| Working distance | 0.2 – 0.3 m | 0.35 – 1.2 m | 0.4 – 1 m | 0.4 – 1 m | – |
| Linear field of view, H×W @ closest range | 90 × 70 mm | 160,000 cm³ | 61,000 cm³ | 61,000 cm³ | 6,000 cm³ (18.5 times larger) |
| Linear field of view, H×W @ furthest range | 180 × 140 mm | 244 × 142 mm | 214 × 148 mm | 214 × 148 mm | – |
| Angular field of view, H×W | 30 × 21° | 838 × 488 mm | 536 × 371 mm | 536 × 371 mm | – |
| Ability to capture texture | Yes | 38.5 × 23° | 30 × 21° | 30 × 21° | – |
| Texture resolution | 1.3 mp | Yes | Yes | No | Yes |
| Colors | 24 bpp | 2,3 mp | 1,3 mp | – | 13 MP |
| 3D reconstruction rate for real-time fusion, up to | 7.5 fps | 24 bpp | 24 bpp | – | 24 bpp |
| 3D reconstruction rate for 3D video recording, up to | 7.5 fps | 22 fps | 16 fps | 16 fps | – |
| 3D reconstruction rate for 3D video streaming, up to | – | 44 fps | 16 fps | 16 fps | – |
| Data acquisition speed, up to | 1 mln points/s | 80 fps | – | – | – |
| 3D exposure time | 0.0002 s | 35 mln points/s | 18 mln points/s | 2 mln points/s | 1 mln points/s |
| 2D exposure time | 0.0002 s | 0.0002 s | 0.0002 s | 0.0002 s | customizable |
| 3D light source | Blue LED | 0.0002 s | 0.00035 s | 0.00035 s | customizable |
| 2D light source | White 6 LED array | VCSEL | Flashbulb | Flashbulb | RGB LED |
| Position sensors | – | White 12 LED array | White 12 LED array | White 12 LED array | RGB LED |
| Display/touchscreen | USB streaming through external computer | Built-in 9 DoF inertial system | – | – | – |
| Multi-core processing | On external computer | Integrated 5.5″ half HD, CTP. Optional Wi-Fi/Ethernet video streaming to external device | USB streaming through external computer | USB streaming through external computer | USB streaming through external computer |
| Interface | 1 × USB 2.0, USB 3.0 compatible | Embedded processors: NVIDIA® Jetson™ TX1 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores | On external computer | On external computer | On external computer |
| Internal hard drive | – | Wi-Fi, Ethernet, SD card | 1 × USB 2.0, USB 3.0 compatible | 1 × USB 2.0, USB 3.0 compatible | USB 3.0 |
| Supported OS | Windows 7, 8, 10, 11 x64 | 512 GB SSD | – | – | – |
| Recommended computer requirements | Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM | Scanning: No computer required Data processing: Windows 7, 8, 10, 11 x64 | Windows 7, 8, 10, 11 x64 | Windows 7, 8, 10, 11 x64 | Windows 10, 11 x64 |
| Minimum computer requirements | Intel Core i5, i7 or i9, 18 GB RAM, GPU with 2 GB VRAM | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+ | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+ | Intel Core i7 or i9, 32 GB RAM, GPU with 2 GB VRAM | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+ |
| 3D mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB | HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM A computer is needed only for data processing. Scanning does not require a computer. | HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM | Intel Core i5, i7 or i9, 12 GB RAM, GPU with 2 GB VRAM | Intel Core i5, i7, or i9, 32GB RAM, GPU with 2 GB VRAM |
| CAD | STEP, IGES, X_T | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| Measurements | CSV, DXF, XML | STEP, IGES, X_T | STEP, IGES, X_T | STEP, IGES, X_T | STEP, IGES, X_T |
| Power source | AC power or external battery pack | CSV, DXF, XML | CSV, DXF, XML | CSV, DXF, XML | CSV, DXF, XML |
| Dimensions, HxDxW | 190 × 140 × 130 mm | Built-in exchangeable battery, optional AC power | AC power or external battery pack | AC power or external battery pack | AC power |
| Weight | 0.8 kg / 1.8 lb | 231 × 162 × 230 mm | 262 × 158 × 63 mm | 262 × 158 × 63 mm | 396 × 405 × 337 mm |
