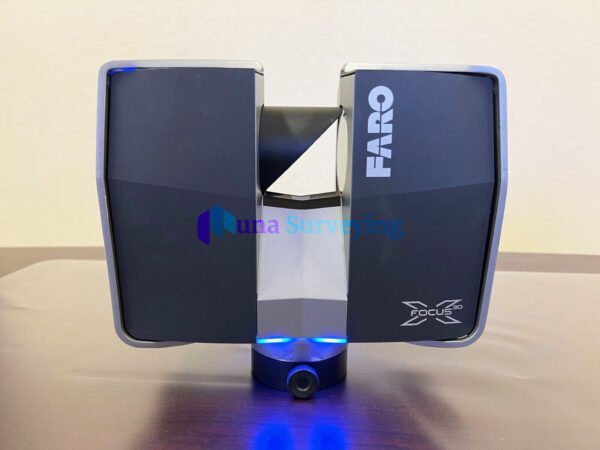

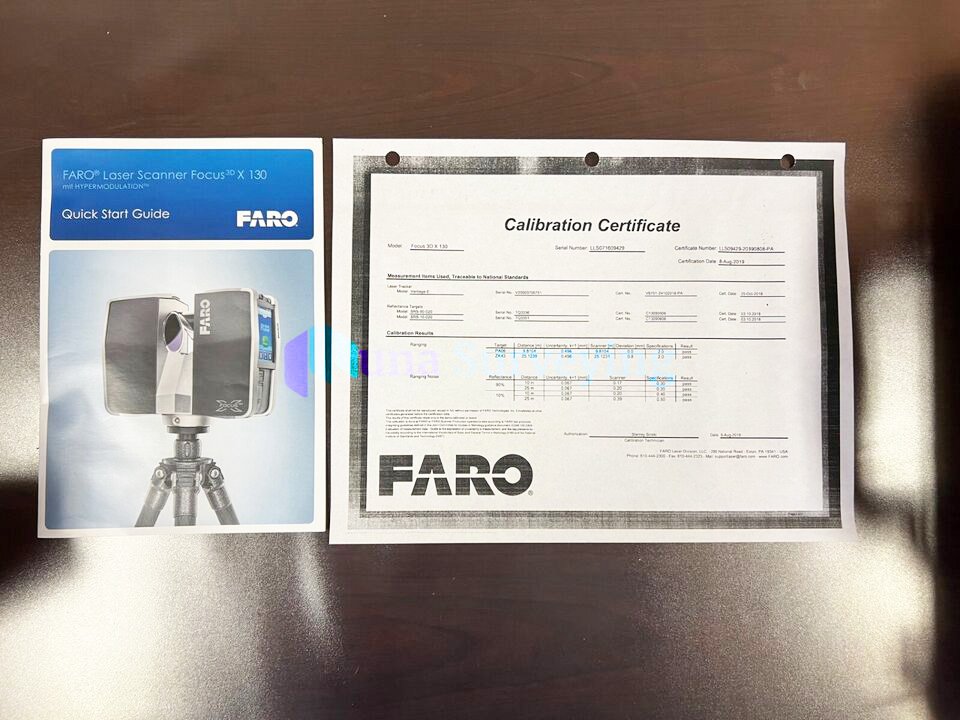

Faro Focus3D X130 3D Laser Scanner, fully tested serviced and calibrated by FARO and is in complete working order.
Unit comes with a battery, power supply for charging, and ABS road case. The scanner was used in the field, so it does show signs of wear and tear. Please look over all photos carefully for cosmetic condition.
FARO Focus 3D X 130 Laser Scanner
The new X-series laser scanner FARO Focus3D X 130 is a powerful high-speed 3D scanner for all kinds of applications. The ultra-portable Focus3D X 130 enables fast, straightforward, and yet accurate measurements of façades, complex structures, production and supply facilities, accident sites, and large-volume components. Combining the highest-precision scanning technology with authentic mobility and ease-ofuse, the new device offers reliability, flexibility, and real-time views of recorded data.
The 3D scan data can easily be imported into all commonly used software solutions for accident reconstruction, architecture, civil engineering, construction, forensics or industrial manufacturing. With a battery runtime of 4.5 hours, the laser scanner has also a high level of flexibility and endurance. The Focus’ light weight, small size and SD-card makes the scanner truly mobile.
The new FARO Focus3D X 130 is the powerful and affordable tool for mid-range 3D documentation applications. One million points/second scanning rate, ease-of-use, portability, scanning range up to 130m, integrated GPS, very low noise as well as WLAN remote control make it a universal tool for all kinds of working environment.
FARO Focus3D X 130 has similar characteristics as Faro Focus 3D 120 S. Compared to its predecessor has built-in GPS module, laser operates at a different wavelength and especially is included in the 1st safety class. Another advantage is the reduction of noise in scans by more than half. Resolution of built-in camera remained unchanged, i.e.70 MPX. Model X330 as the name reveals has a range up to 330m and also has a built-in laser of 1st safety class and the GPS module. In addition to a large range up to 330 m can be used even in direct sunlight. Thanks to these improvements facilitate the scanning and the processing of collected data.
Features:
Mid range scanning – up to 130m
Its range up to 130m allows the Focus3D X 130 for laser scanning in all kinds of applications in the architecture, BIM, heritage, forensics, shipbuilding, construction, process industry, CGI, and many others.
EXtra positioning – integrated GPS receiver
Effortlessly determine the position of the scanner. This helps to facilitate the registration process and provides the exact time and location of the users scans.
EXtra portable
The Focus3D X 130 has the size of only 24 x 20 x 10 cm and a weight of just 5.2kg. Waterproof Pelicase and a ergonomic backpack incl. tripod holder make the device truly portable.
Wireless LAN
WLAN remote control permits you to start, stop, and view scans at a distance.
Best value for money
The new Focus3D X 130 delivers extraordinary performance at affordable rates, unique to the market.
Key Features
Ranging unit
Unambiguity interval: >130m
Range Focus3D X 130: 0.6m – 130m indoor or outdoor with upright incidence to a 90% reflective surface
Measurement speed (pts/sec): 122,000 / 244,000 / 488,000 / 976,000
Ranging error1: ±2mm
Colour unit
Resolution: Up to 70 megapixel colour
Dynamic colour feature: Automatic adaption of brightness
Parallax: Co-axial design
Deflection unit
Field of view (vertical/horizontal): 300° / 360°
Step size (vertical/horizontal): 0.009° (40,960 3D-Pixel on 360°) / 0,009° (40.960 3D-Pixel on 360°)
Max. vertical scan speed: 5.820rpm or 97Hz
Laser (optical transmitter)
Laser class: Laser class 1
Wavelength: 1550nm
Beam divergence: Typical 0.19mrad (0,011°) (1/e, halfangle)
Beam diameter at exit: Typical 2.25mm (1/e)
Data handling and control
Data storage: SD, SDHC, SDXC; 32GB card included
Scanner control: Via touchscreen display and WLAN
New WLAN access: Remote control, scan visualisation are possible on mobile devices with Flash®
Multi-Sensor
Dual axis compensator: Levels each scan: Accuracy 0.015°; Range ± 5°
Height sensor: Via an electronic barometer the height relative to a fixed point can be detected and added to a scan.
Compass4: The electronic compass gives the scan an orientation. A calibration feature is included.
GPS: Integrated GPS receiver
Power supply voltage: 19V (external supply) / 14.4V (internal battery)
Power consumption: 40W and 80W (while battery charges)
Battery life: 4.5 hours
Ambient temperature: 5° – 40°C
Humidity: Non-condensing
Cable connector: Located in scanner mount
Weight: 5.2kg
Size: 240 x 200 x 100mm
