Sokkia SX-105T 5″ Robotic Total Station RC-PR5A Remote ATP1 Prism, used in excellent working and cosmetic condition, sale includes Original Sokkia Remote and Prism
Package Includes:
- Sokkia SX-105T 5″ Robotic Total Station
- RC-PHR5 HANDLE
- RC-PR4 – Remote Controller
- Sokkia Prism (ATP-1)
- Sokkia BATTERY – BDC70
- Sokkia CHARGER
- Sokkia Hard Carry Case
Sokkia SX-105T Robotic Total Station
The Sokkia SX-105T gives you a choice of 3 accumulation points and a reflector-less range of up to 3,281 feet. With TShield and Magnet field on-board software, dual-axis compensation, a coaxial red laser pointer, long-range Bluetooth Class 1, and a 3.5 inch colored LCD display feature, the SX-105T is just what you need to lay out more points per day.
Advanced tracking technology: Incorporating cutting-edge laser and image processing technologies, the SX provides superior prism tracking capability. This professional-grade robotic total station brings world-class performance to any job site. Like all of our solutions, you can customize it to meet your needs and create your own workflows. Exceptionally accurate auto-tracking. RED-tech reflectorless EDM technology• Long-range data communication. RC-PR5 remote control system. TSshield protection. Waterproof, rugged, and user-friendly
Precision auto-tracking: Even with intensive reflections from behind a prism, or with repetitive interruptions in the line of sight, the SX tightly tracks a moving prism. Advanced tracking algorithms enhance the ability to predict future prism positions, dramatically increasing tracking stability.
Long-range communication: The Sokkia SX series total station features Bluetooth® Class 1 wireless technology for reliable data communications. All SX data is instantly available on your Bluetooth® equipped controller.

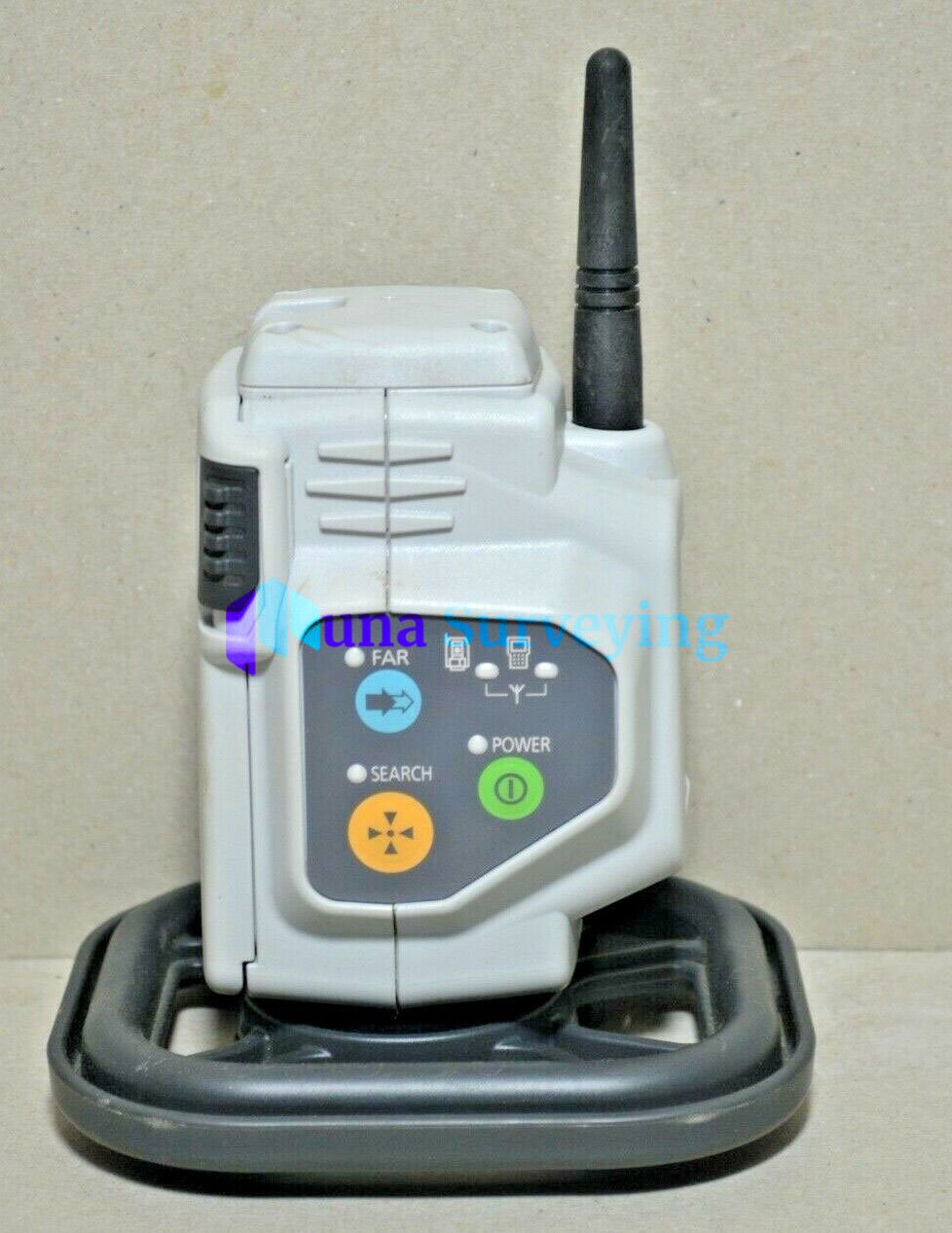

Complete control: The RC-PR5 on-demand remote allows for rapid prism search no matter your position. A built-in directional sensor constantly monitors the prism movement so the SX can turn left or right, whichever direction is closer.
Precise positioning: An advanced six-prism configuration provides unsurpassed measurement precision due to a minimum offset of each prism center.
Advanced angle measurement system: The SX series features our best-in-class absolute encoders that provide long-term reliability in any job site condition. The dual-axis compensator ensures stable measurements even when set up on uneven terrain.
TSshield: Every SX total station is equipped with a telematics-based multifunction communications module providing the ultimate security and maintenance capabilities for your investment.If the activated instrument is lost or stolen, you can send a coded signal to the instrument and disable it, from anywhere in the world.
RED-tech technology reflectorless EDM
- Fast distance measurement of 0.9 s regardless of object
- Pinpoint precision in reflectorless distance measurement
- Reflectorless operation from 30 cm to 1,000 m*
- Coaxial EDM beam and laser-pointer provide fast and accurate aiming
- Ensures accuracy even with reflective sheets (* With Kodak Gray Card white side (90% reflective). Brightness level at object surface: ≤500 lx.)
Field ready
- Waterproof / dustproof IP65 rating design handles the toughest environments
- Magnesium-alloy housing provides stable angle accuracy
- Standard usage temperature range of -20 to 50°C
Sokkia SX-105T Robotic Total Station Technical Specifications
| Rotation Speed / Auto-Tracking Speed | 85°/sec (at 20°C) / 20°/sec |
| Operating Range | ATP1/ATP1S 360° Prism: 2 to 600 m CP01 mini prism: 1.3 to 700 m OR1PA mini prism: 1.3 to 500 m AP prism: 1.3 to 1,000 m |
| Angle Measurement | |
| Minimum Reading | 1″ / 5″ |
| Angle Measurement | 5″ |
| Tilt Compensation | Dual Axis, Compensation Range: ±6′ |
| Distance Measurement | |
| Prism Measuring Range | ATP1/ATP1S 360° Prism: 1.3 to 1,000 m CP01 mini prism: 1.3 to 2,500 m OR1PA mini prism: 1.3 to 500 m AP prism: 1.3 to 6,000 m under good conditions*1 |
| Prism accuracy | ±(1.5 mm + 2 ppm x D) mm (D=measuring distance in mm) |
| Reflective Sheet Target Measuring Range*3 Accuracy*3 | 1.3 to 500 m with RS90N-K reflective sheet ±(2 mm + 2 ppm x D) mm |
| Reflectorless Measuring Range*2 Accuracy*2 | 0.3 to 1,000 m under good conditions*1 ±(2 mm + 2 ppm x D) mm |
| Interface and Data Management | |
| Operating System | Microsoft Windows® CE 6.0 |
| Display | 3.5 in. / Transmissive TFT QVGA color LCD |
| Memory | 500MB internal memory, USB flash memory (up to 8GB) |
| Interface | USB2.0 (Type A/mini B) / RS-232C |
| Wireless Communication | |
| Bluetooth® Class 1 | Communication range: 600 m*4 |
| General | |
| Dust/Water Rating | IP65 (IEC 60529:2001) |
| Operating temperature | -20°C to 50°C |
| Laser pointer | Coaxial red laser pointer using EDM measuring beam, Class 3R laser |
| Guide light | Green and Red LED, Working range: 1.3 to 150 m |
| Size (w x d x h) | 230 x 207 x 393 mm |
| Power Supply | |
| BDC70 Standard Battery | 7.2 V, 5.2 Ah |
| Operating time | Approx. 4 hours*5 |
| Signal source / Laser output | Red laser diode (690nm) / Reflectorless mode: Class 3R, Prism / Sheet mode: Class 1 equivalent |
| RC-PR5 Remote Control System (Option of Auto-Collimating Model) | |
| Operating Range (slope distance) | Far mode: 2 to 300 m / Standard mode: 2 to 100 m |
| Measuring time | 15 sec |
| *1 Condition 1: No haze with visibility about 40 km, overcast with no heat shimmer. *2 Fine mode. With Kodak Gray Card White Side (90% reflective). Brightness level at object surface: ≤500 lx. When brightness on measured surface is 30,000 lx. or less. Reflectorless range/accuracy may vary according to measuring objects, observation situations and environmental conditions. *3 When the measuring beam’s incidence angle is within 30º in relation to the reflective sheet target. *4 Wireless communication range may vary depending on obstruction and other environmental conditions. *5 In continuous face-1 and face-2 observations by using Auto-Collimating |
