Stonex X150 Laser Scanner

Stonex X150 Laser Scanner

The Stonex X150 is an easy-to-use laser scanner with a range of 150 meters and accuracy down to 1 centimetre. The X150 comes with it’s own processing software and is compatible with Stonex Cube-scan and Stonex Reconstructor software.

Tough & Light

X150 is a robust and easy-to-use scanner for quick surveys up to 150 m. The multi-line full dome Lidar technology allows computing 3D models for a wide range of applications. X150 comes with it’s own processing software and is also compatible with Stonex Cube-scan and Stonex Reconstructor software. A perfect tool for fast topographic grade surveys and indoor floor maps.

STRONG CASE

Streamlined aluminum alloy case.

SMALL AND LIGHT

The scanner can be easily used by a single person thanks to its small size and weight of approximately 4 kg.

SELF CALIBRATING

± 5 degrees tilt supplement angle for precise leveling. A 360° one-stop scan requires only 45s.

PANORAMIC HDR CAMERA

Add colour to your scan.

WIRELESS CONTROL

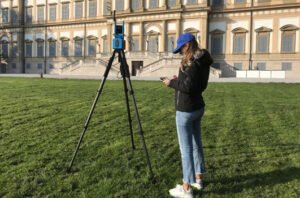

Through the dedicated APP it is possible to control the device remotely. Scan with one click and check quality via real-time preview.

X150 3D Laser Scanner – Main features

• Compact 3D scanning station
• Robust and light – 4 kg with battery installed
• Automatic riding in the range of +/- 5 degrees
• The simple and intuitive operating interface ensures optimal efficiency in field use
• 18 Mpx HDR panoramic camera
• Fully encapsulated 3D scanner mirror – the sealed housing ensures efficiency in any environmental conditions
• Class I 3D laser beam: harmless to the eyes, even with long-term exposure
• Advanced wireless capabilities: control the X150 3d laser scanner directly from your smartphone (app for iOS, Android and Windows Mobile)

X150 3D Laser Scanner – Technical specifications

X150 3D Laser Scanner : Performance

• Range of action: 0.2 – 150 m
• Field of view: 360° horizontal, 280° vertical
• 3D scan rate: up to 320,000 points/second
• 3D scanning speed at maximum resolution: 4 min for 360 degree scanning
• 3D scanning speed in “Fast scan” mode: 45 sec for 360 degree scanning
• 2-axis compensator with +/- 5 degrees working range
• 3D scanning accuracy: up to 1 cm
• Remote control with Android controller

X150 3D Laser Scanner : Camera

• Photo: 360 degree HDR camera
• Resolution: 18 Megapixel resolution
• Connectivity: WiFi/Bluetooth, MicroSD, Micro USB
• Memory: 250GB hard disk + 128 GB TF card
• Dimensions: 364 x 139 x 122 mm
• Weight: approx. 4 Kg
• Protection against water and dust: IP54
• Batteries: LiPo 65 x 2 pieces
• Battery life: 4 hours each

3D software

Stonex 3D Reconstructor

The Stonex 3D Reconstructor software allows you to manage and align point clouds acquired through laser scanner or other sensor (such as Stonex handheld scanners), clouds produced by photogrammetry and in general any point cloud.
Complete and clear workflows will guide you during the processing and expandable modules are able to meet different needs, covering many fields such as: surveying, mining, construction, architecture, cultural heritage, BIM, galleries etc.

Stonex Cube Scan

Cube-scan is part of Stonex Cube-suite. Easy to use and learn, it allows basic 3D workflows. Import point clouds from Stonex scanner or different sensors and clean them through selection tools.
Align point clouds by choosing from the variety of registration modes. Export registered point clouds to work with your own software or process measures, contour lines, edges and orthophotos.

Included:

• STONEX X150 in a carrying case
• 2 LiPo 6S 22.8V batteries
• Adapter for charging
• Data cable
• Carbon fiber tripod
• Cube x150 software
• X150 app
• Included panorama camera
