Topcon 3D-MC2 Dual Antenna GPS Machine Control with GX-55 3D Control box with 3 Machine Options enabled and Topcon DUAL MCR3 with MC2 enabled UHF Digital II 450-47 Mhz.
This setup is in good shape and ready to be installed and go to work. All gears has been serviced by Topcon authorized, performed all firmware updated.

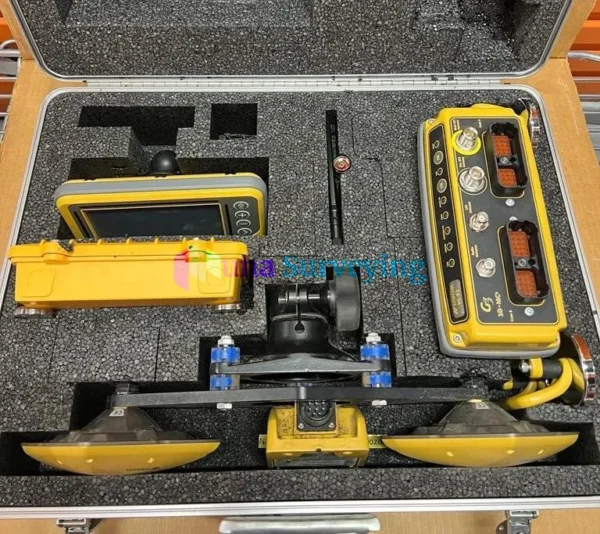

Package includes;
- Topcon GX55 3D Control Box, with 3 Machine Options enabled
- Topcon DUAL MCR3 with MC2 enabled with UHF Digital II 450-470 MHz
- 2X Topcon PG-S3 Antenna with MC Mount
- Topcon Dual Antenna Cable
- Topcon MC2 Sensor
- Topcon MC2 Cable
- Topcon Mast
- Carry Case
Topcon 3D-MC2
Topcon’s 3D-MC² takes 3D machine control to a whole new level, making your dozer a high-speed finishing tool! The secret to 3D-MC²’s increased grade performance is a revolutionary 3D-MC² sensor which measures movement and rotation in 9 axes, and 10 times faster than standard systems
3D-MC² will make your dozer more versatile, in some cases it may even replace the need for a motor grader. Operators can move twice as fast, get to grade in fewer passes and with greater accuracy than any other system. This results in less machine operating time, less fuel, less wear on the machine and most importantly increased productivity.
Comes in Single-Antenna and Twin-Antenna (shown) configurations.
The Topcon 3D-MC2 advantage: Fine grading with a dozer has been typically done in first gear. Not anymore. Now you can move more material at higher speeds and at a tighter accuracy with one machine. That’s the Topcon advantage.
Shatter the 3D automation production barrier-speed
- Increase speeds up to 200% over existing 3D systems.
- Smoothness and grading accuracy comparable to motor graders.
- Same easy-to-use interface as previous Topcon machine automation systems.
- Unmatched productivity that you will have to see to believe.
Traditional finish grading with a dozer took multiple passes at slower speeds. Existing 3D-GPS machine control allowed operators to double their production. 3D MC2 uses revolutionary technology to reach an unbelievable new level of performance: four times faster than a standard dozer, two times faster than any 3D dozer. One dozer doing the work of two 3D dozers, think of the money you will save!
More efficient use of your machine
3D-MC2 system will drastically change the role your dozer plays on a typical job site, in some cases it may even replace the need for a motor grader. It also means more efficient use of your dozer. Not only does speed increase, but fewer passes are needed, so more work can be done in less time. That means less machine operating time translating into less fuel, less wear on a machine and most importantly: more time that can be spent working in other areas or job sites.
Improved operator performance
3D-MC2 is built on our same easy to use interface so your operators will have no problem putting it to work right away. With the advancements of 3D-MC2 less experienced operators will be able to compete with the most skilled operators. More for less, what could be better?
How it works

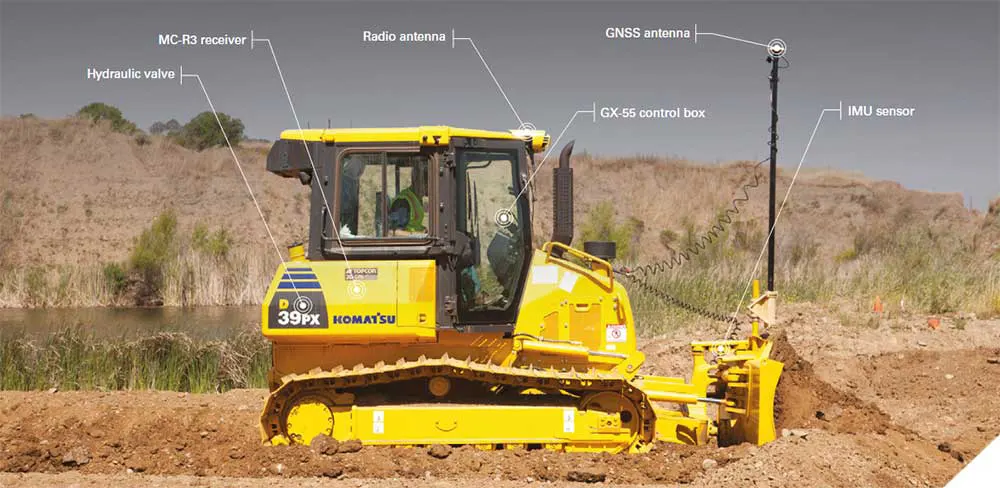

3D-MC2 utilizes the GX-55 control box, GNSS antenna, MC-R3 receiver, a single MC2 sensor and intuitive software to deliver position updates 100 times per second. The MC2 sensor combines a gyro, compass and inertial sensor to measure the X, Y and Z position as well as the roll, pitch, yaw and acceleration of the dozer. 3D-MC2 is uniquely configured to deliver stability and control at any moment
Topcon GX55 3D Control Box
The bright and robust GX-55 delivers the highest quality graphical interface experience for modern machine control. The GX-55 was designed to handle rugged field conditions as well as harness powerful processing power needed to instantly display real time position and project design information.
