Topcon LN-150 Total Station Layout Navigator Kit, in excellent working condition, accurate and dependable. Utilized for indoor and outdoor layouts on construction project sites in the past.
Includes all necessary accessories
- Topcon LN-100 station
- 2X batteries+charger for LN-100
- Prism
- Level
- Original Fitted protective hard case for LN-100
- Lightweight and robust tripod for LN-100
- Adjustable height walking stake for prism
- Short stake for floor layout
- Hardened steel marking point

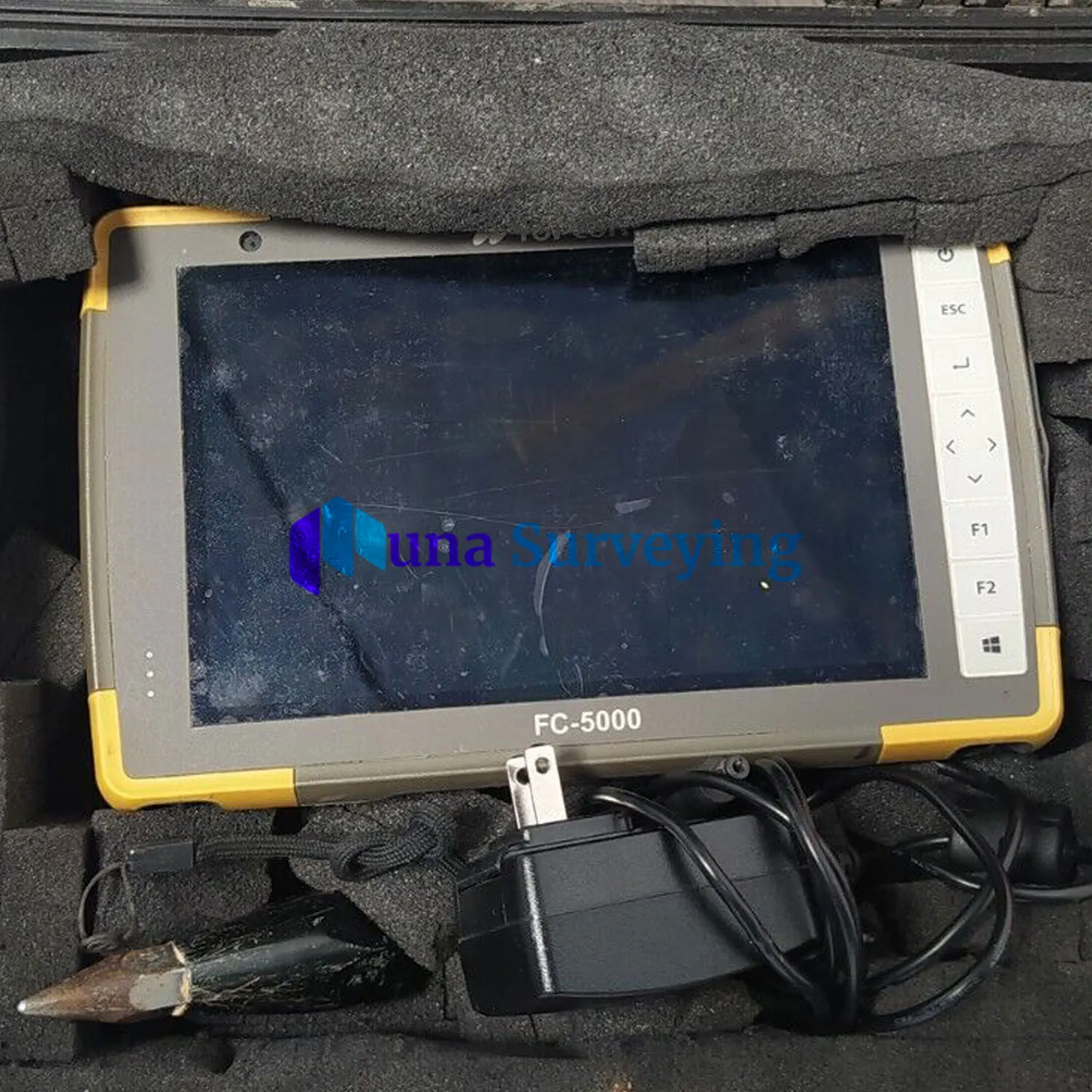

- Topcon FC-5000 Field controller
- Charger for FC-5000
- All needed software loaded on FC-5000
- Can download data points via laptop connection or Bluetooth
- Hard case for FC-5000
- Carrying cases for stakes and tripod
Topcon LN-150 Layout Navigator
By blending our self-leveling laser and robotic total station technologies, Topcon created a new way to perform construction and BIM layout. Simply position and turn on the layout navigator to self-level and connect, automatically. Control the LN-150 with either the full-capability MAGNET Field data collection software, or with MAGNET Construct, the no-cost Android app.
The Topcon LN-150 takes you from paper plans and tape measures into digital layout and construction verification workflows. This tool is easy to learn and easy to use, letting you automate and execute layout and construction verification processes for increased productivity, accuracy, and bottom-line savings.
Topcon’s LN-150 layout navigator was engineered for contractors’ specific positioning needs.
The layout navigator automatically locks onto the prism for real-time positioning on the go. Built to perform on any project that demands confident, precise 3D positioning at up to a 130m (426ft) working radius, the LN-150 is a uniquely user-friendly solution for your positioning needs.
The LN-150 takes you from paper plans and tape measures into digital layout and construction verification workflows. This tool is easy to learn and easy to use, letting you automate and execute layout and construction verification processes for increased productivity, accuracy, and bottom-line savings.
- Simple upgrade for machine guidance
- Easy one-button, self-leveling setup
- Wi-Fi and long-range Bluetooth® instrument communication options
- Seamless cloud-connected workflows with Autodesk, Bentley, and MAGNET
- Easy to use with MAGNET or Pocket3D software
Product Highlights
- Range up to 984 feet working range
- Self-leveling within ±3 degrees
- Accuracy of ±1/8 inch at 164 feet
- 360-degree horizontal coverage
- Automatically turns to layout points
- Tracks a standard prism
- Choice of 2 packages
- Wireless-ready connectivity
Easy data workflows
The LN-150 is optimized for use with MAGNET field, cloud, and office software and includes seamlessly integrated workflows with popular design software, including:
- Autodesk’s Revit, Navisworks, AutoCAD Civil3D, and BIM 360
- Bentley’s ProjectWise and OpenRoads
Field control with MAGNET Construct covers basic layout and verification applications, while MAGNET Field Layout can be used for more advanced applications.
Features
- 3D layout tool: The LN-150 is a compact, self-leveling, easy-to-setup 3D layout tool designed for construction applications. Use the LN-150 in place of traditional methods such as tapes or other layout tools. Compact, rugged and light weight, the LN-150 is ideal for construction layout and as-builts.
- Building Information Modeling (BIM): Maintain coordination throughout your projects. Knowing what was done before and working from the same design plan is critical to keep on schedule and avoid costly collisions. With Topcon BIM solutions, you stay connected to the same design.
- LN-150 Construction Total Station applications: Topcon’s intelligent layout tools will increase your efficiency and avoid costly rework through accurate layout of your digital site plans. Layout all this and more with the Topcon LN Series: – Decking – Wall and ceiling layout – Columns – Lift shafts – Penetrations – Wet Areas – HVAC – Electrical – Plumbing – IT Cabling
- Set out your site plans yourself: Reduce your dependence on surveyors and eliminate rework with the LN-100 or LN-150 construction layout tool from Topcon
- Easy setup and operation: Simply power on the instrument and it will self level so you’re ready to work in seconds. Use your wireless controller to call up simple point layout or large, complex CAD drawings in the palm of your hand, anywhere on site.
- Delays cost money. Mistakes cost money: With more than 80 years of optical technology innovation behind it, Topcon’s LN-150 layout navigator was engineered for contractors’ specific indoor/outdoor positioning needs. The layout navigator automatically locks onto the prism for real-time positioning on the go. Built to perform on any project that demands confident, precise 3D positioning at up to a 130m working radius, the LN-150 is a uniquely user-friendly solution for your positioning needs.
- Jobsite-ready: Display the design point or line that you need, touch it on your controller, and the LN-150 immediately points to the exact location. It can also lock onto a prism and guide you to the next design points.
- Easy data workflows: The LN-150 is optimized for use with MAGNET field, cloud, and office software and includes seamlessly integrated workflows with popular design software, including: Autodesk’s Revit, Navisworks, AutoCAD Civil3D, and BIM 360 Bentley’s ProjectWise and OpenRoads Field control with MAGNET Construct covers basic layout and verification applications, while MAGNET Field can be used for more advanced applications such as setting jobsite control.
