Trimble S5 3″ DR+ Robotic Total Station kit includes TSC3 Trimble Access Radio 2.4 GHz, Prism 360- MT1000. All very good working, fully tested and calibrated, comes with a Calibration Certificate from a Trimble Certified Technician includes a Trimble Certified 1-Year Hardware Warranty

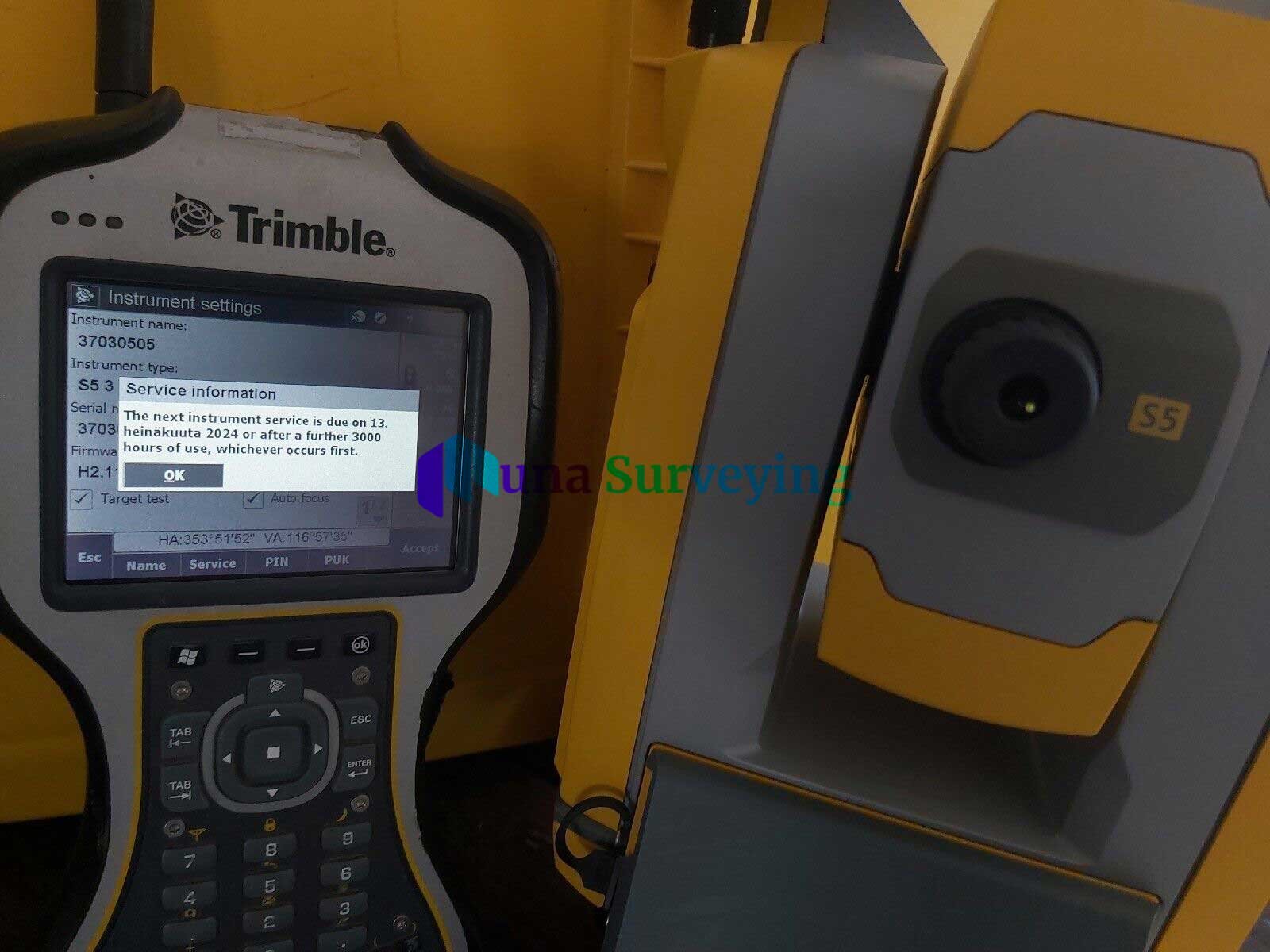

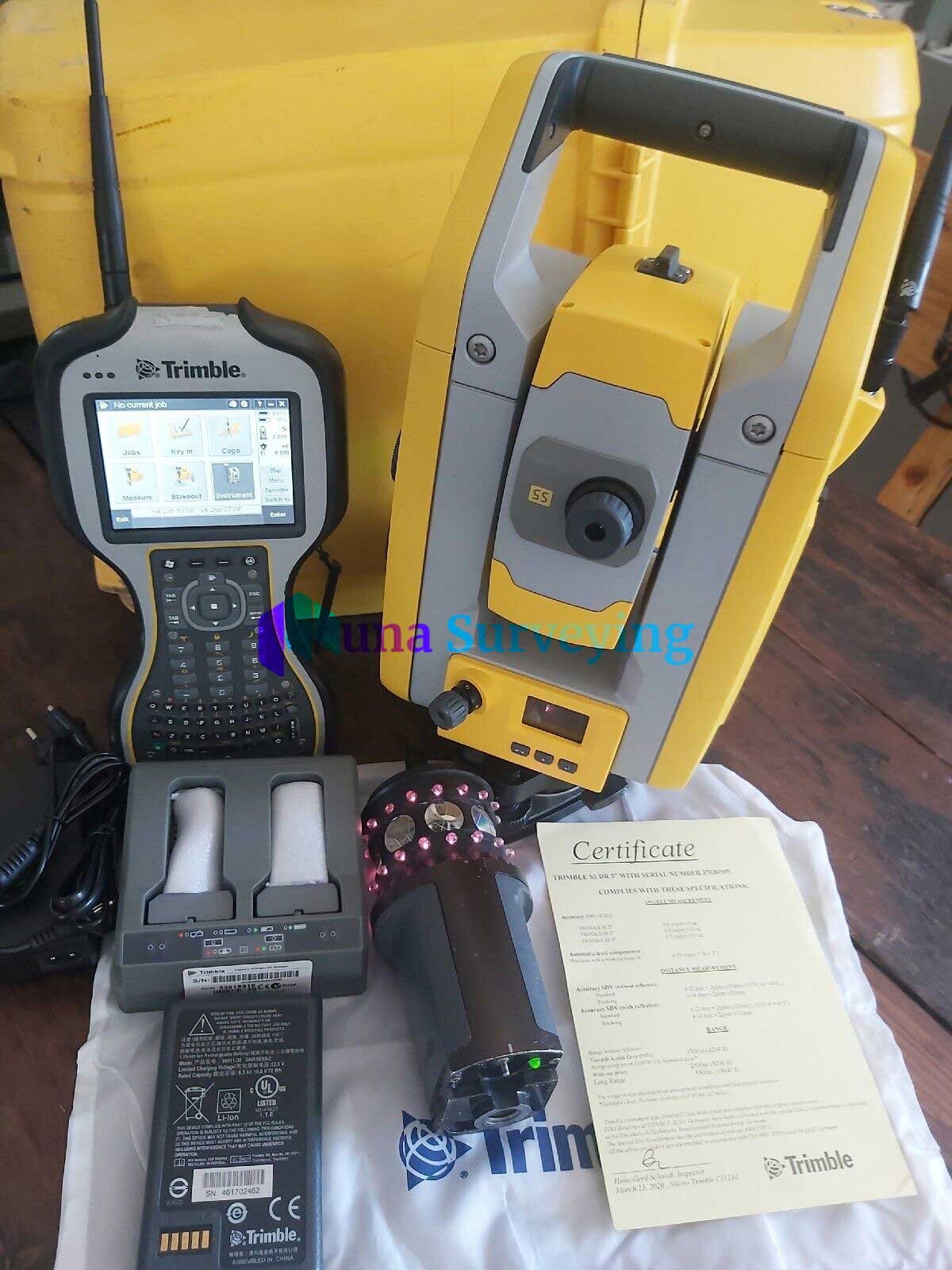

Includes;
- Trimble S5 3″ DR+ Robotic Total Station, Calibration Certificate from a Trimble Certified
- Tribrach – Trimble
- Trimble TSC3 Controller with Access Field Software
- Hard carry case
- 2X Batteries
- Dual bay dock and 240v charger
- 1x 360 Degree passive prism
Trimble S5 3″ Robotic, DR Plus, Active Tracking
The Trimble S5 Total Station provides the foundation for Trimble’s Integrated Surveying solutions. With Integrated Surveying, you can seamlessly integrate complementary technologies on the job site, such as Trimble GNSS receivers and optical measurements.
The Trimble S5 Total Station is built upon proven Trimble technologies like SurePoint, MagDrive and our DR Plus EDM, helping you work more efficiently while maintaining the highest accuracy possible.
- Everything you need to perform survey campaigns
- Measure further and faster with the Trimble DR Plus EDM
- Locate2Protect real-time equipment management
- Seamless integration with the Trimble V10 Imagine Rover and GNSS receivers
- Intuitive Trimble Access Field Software
- Trimble Business Center Office Software for quick data processing
Features
- Trusted Perfomance: All you need to perform efficient surveying campaigns is available in the Trimble® S5 Robotic Total Station solution: An accurate and reliable instrument, DR Plus EDM, MagDrive™ technology, the popular Trimble TSC3 controller with Trimble Access™ field software and quick data processing with Trimble Business Center office software. Trimble has been manufacturing the industry’s leading robotic total stations for over a decade. You can depend on the Trimble S5 Total Station to keep you productive in the field no matter what you encounter.
- Trimble Technology: The Trimble S5 Total Station is built upon proven Trimble technologies like SurePoint™, MagDrive and our DR Plus EDM, helping you work more efficiently while maintaining the highest accuracy possible. Smooth and silent, Trimble MagDrive electro-magnetic technology means fewer moving parts, which reduces servicing requirements. Trimble SurePoint ensures accurate pointing and measurements by actively correcting for unwanted movements like wind, handling, and sinkage. The Trimble DR Plus EDM allows you to measure with fewer instrument set-ups and enhance your direct reflex performance.
- Manage Your Assets 24/7: Know where your total stations are 24 hours a day with Trimble Locate2Protect technology. See where your equipment is at any given time and get alerts if your instrument leaves a jobsite or experiences unexpected equipment shock or abuse. Trimble InSphere Equipment Manager system lets you view usage and keep up-todate on firmware, software and maintenance requirements. With Trimble Locate2Protect and InSphere Equipment Manager, you can rest assured knowing your equipment is up-to-date and where it should be.
- Robotic and Autolock: The Trimble S5 Total Stations are available in robotic or Autolock®-only versions. The Trimble S5 robotic and Autolock versions have an optional TCU data collector with Trimble Access field software for convenient, simple operation in any environment.
- Integrated Surveying: The Trimble S5 Total Station provides the foundation for Trimble’s Integrated Surveying solutions. With Integrated Surveying, you can seamlessly integrate complementary technologies on the job site, such as Trimble GNSS receivers and optical measurements.
- Powerful Field and Office Software: Choose from a variety of Trimble controllers operating the feature rich, intuitive Trimble Access field software. Streamlined workflows guide crews through common project types, helping to get the job done faster with less distractions. Trimble Access workflows can also be customized to fit your needs. Back in the office, trust Trimble Business Center software to help you check, process and adjust your optical, leveling, and GNSS data in one software solution. No matter what Trimble instruments you use in the field, you can trust that Trimble Business Center office software will help you generate industry-leading deliverables.
Trimble S5 3″ DR+ Robotic Total Station Specifications:
| PERFORMANCE | |
| Angle measurement | |
| Sensor type | Absolute encoder with diametrical reading |
| Accuracy (Standard deviation based on DIN 18723) | 3″ (1.0 mgon) |
| Angle Display (least count) | |
| Type | Centered dual-axis |
| Accuracy | 0.5″ (0.15 mgon) |
| Range | ± 5.4′ (±100 mgon) |
| Distance measurement | |
| Accuracy (ISO) Prism mode | Standard: 1 mm + 2 ppm (0.003 ft + 2 ppm) |
| Accuracy (RMSE) | Standard: 2 mm + 2 ppm (0.0065 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm) |
| DR mode | Standard: 2 mm + 2 ppm (0.0065 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm) Extended Range: 10 mm + 2 ppm (0.033 ft + 2 ppm) |
| Measuring time Prism Mode | Standard: 1.2 sec Taracking: 0.4 sec |
| DR mode | Standard: 1–5 sec Tracking: 0.4 sec |
| Measurement Range | |
| Prism mode (under standard clear conditions) | 1 prism: 2500 m (8202 ft) 1 prism Long Range mode: 5500 m (18,044 ft) (max. range) Shortest range: 0.2 m (0.65 ft) |
| EDM SPECIFICATIONS | |
| Light source | Pulsed laserdiode 905 nm, Laser class 1 |
| Beam divergence | Horizontal: 4 cm/100 m (0.13 ft/328 ft) Vertical: 8 cm/100 m (0.26 ft/328 ft) |
| SYSTEM SPECIFICATIONS | |
| Leveling | Circular level in tribrach: 8’/2 mm (8’/0.007 ft) Electronic 2-axis level in the LC-display with a resolution of: 0.3” (0.1 mgon) |
| Servo system | MagDrive servo technology, integrated servo/angle sensor electromagnetic direct drive Rotation speed: 115 degrees/sec (128 gon/sec) Rotation time Face 1 to Face 2: 2.6 sec Positioning time 180 degrees (200 gon): 2.6 sec Clamps and slow motions: Servo-driven, endless fine adjustment |
| Centering | Centering system: Trimble 3-pin Optical plummet: Built-in optical plummet Magnification/shortest focusing distance: 2.3×/0.5 m–infinity (1.6 ft–infinity) |
| Telescope | Magnification: 30× Aperture: 40 mm (1.57 in) Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft) Shortest focusing distance: 1.5 m (4.92 ft)–infinity Illuminated crosshair: Variable (10 steps) |
| Power supply | Internal battery: Rechargeable Li-Ion battery 11.1 V, 5.0 Ah |
| Operating time: | One internal battery: Approx. 6.5 hours Three internal batteries in multi-battery adapter: Approx. 20 hours Robotic holder with one internal battery: 13.5 hours |
| Weight and Dimensions | Instrument (Autolock): 5.4 kg (11.35 lb) Instrument (Robotic): 5.5 kg (11.57 lb) Trimble CU controller: 0.4 kg (0.88 lb) Tribrach: 0.7 kg (1.54 lb) Internal battery: 0.35 kg (0.77 lb) Trunnion axis height: 196 mm (7.71 in) |
| Other | |
| Communication | USB, Serial, Bluetooth |
| Operating temperature | –20 ºC to +50 ºC (–4 ºF to +122 ºF) |
| Tracklight built in | Available in all models |
| Dust and water proofing | IP65 |
| Humidity | 100% condensing |
| Laser pointer coaxial (standard) | Laser Class 2 |
| Security | Dual-layer password protection, Locate2Protect |
| ROBOTIC SURVEYING | |
| Autolock and Robotic Range | Passive prisms: 500 m–700 m (1,640–2,297 ft) Trimble MultiTrack™ Target: 800 m (2,625 ft) Trimble Active Track 360 Target: 500 m (1,640 ft) |
| Autolock pointing precision at 200 m (656 ft) (Standard deviation) | Passive prisms: <2 mm (0.007 ft) Trimble MultiTrack Target: <2 mm (0.007 ft) Trimble Active Track 360 Target: <2 mm (0.007 ft) |
| Shortest search distance | 0.2 m (0.65 ft) |
| Type of radio internal/external. | 2.4 GHz frequency-hopping, spread-sprectrum radios |
| Search time (typical) | 2- 10 Seconds |
| GPS SEARCH/GEOLOCK | |
| GPS Search/GeoLock | 360 degrees (400 gon) or defined horizontal and vertical search window |
| Solution acquisition time | 15–30 sec |
| Target re-acquisition time | <3 sec |
| Range | Autolock & Robotic range limits |
