Description

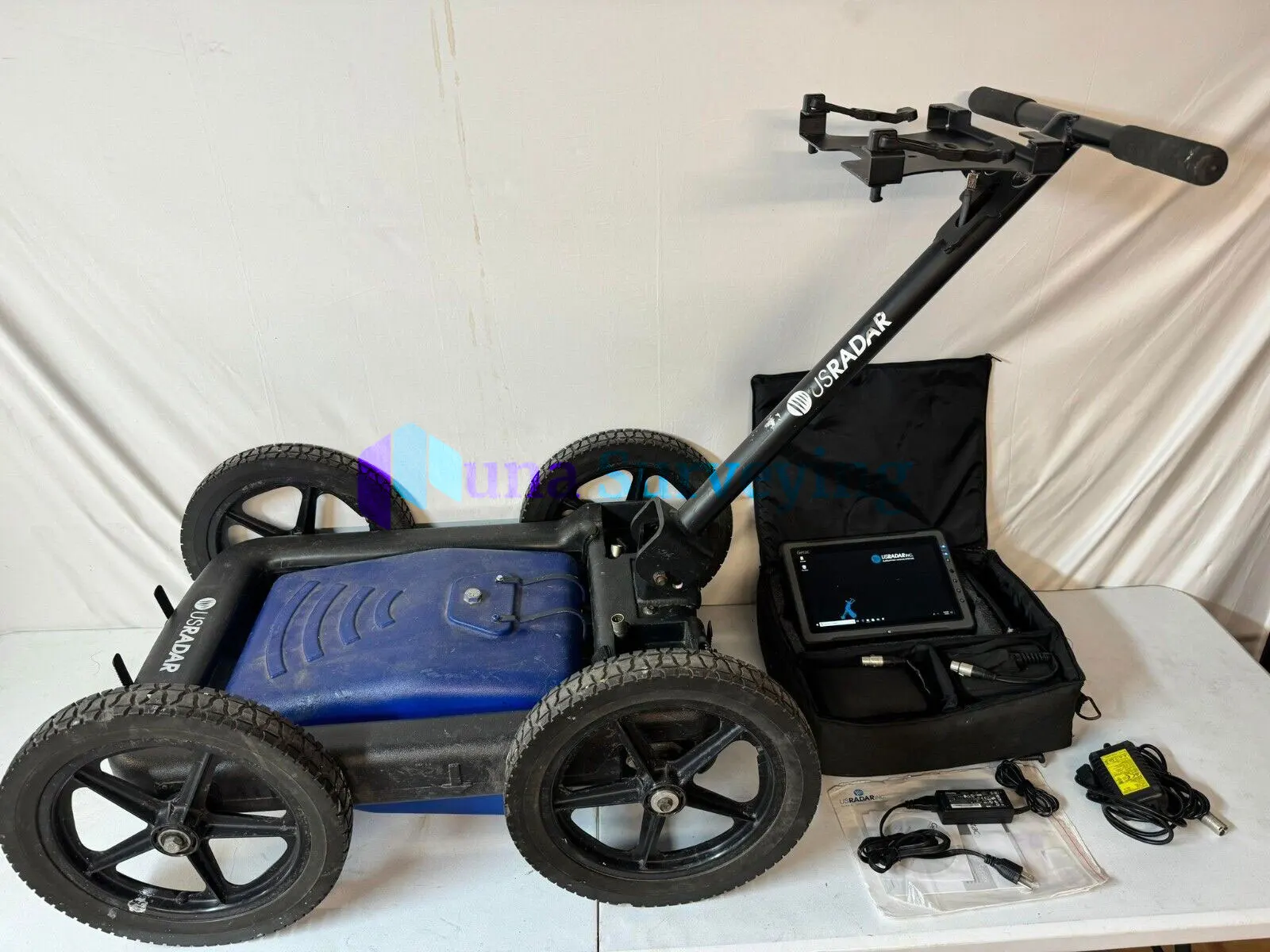

Used US Radar Subsurface Imager Triple Frequency GPR System with Panasonic FZ-G1 Tablet
The Quantum Imager is the first true triple frequency range GPR system ever produced. The antenna emits three separate signals simultaneously, allowing the user to survey significantly greater depths with higher resolution than any other locating technology without sacrificing middle frequencies which are ideal for locating targets like buried utilities. Stepped ultra wideband pulses combine the advantages of pulse radar and stepped frequency radar for unsurpassed resolution and depth.
The Quantum Imager is the first true triple frequency range GPR system ever produced. Because the antenna emits three separate signals simultaneously, the user can survey significantly greater depths with higher resolution than any other locating technology without sacrificing middle frequencies which are ideal for locating targets like buried utilities. Stepped ultra wideband pulses combine the advantages of pulse radar and stepped frequency radar for unsurpassed resolution and depth. New direct RF sampling technology creates clearer, easier to understand images than previously possible with older radar technologies. All these components work together to make locating easier while providing superior results.
The Triple frequency Quantum Imager by US Radar is capable of significantly greater depths with higher resolution than any other locating technology. Stepped Ultra Wideband Pulses combine the advantages of pulse radar and stepped frequency radar to offer unsurpassed resolution & depth. New Direct RF sampling technology creates clearer, easier to understand images than previously possible with older radar technologies. All these technologies work transparently behind the scenes to make locating easier.
FEATURES

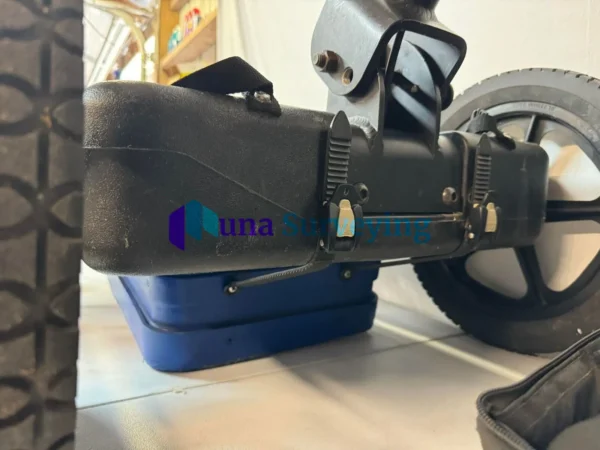

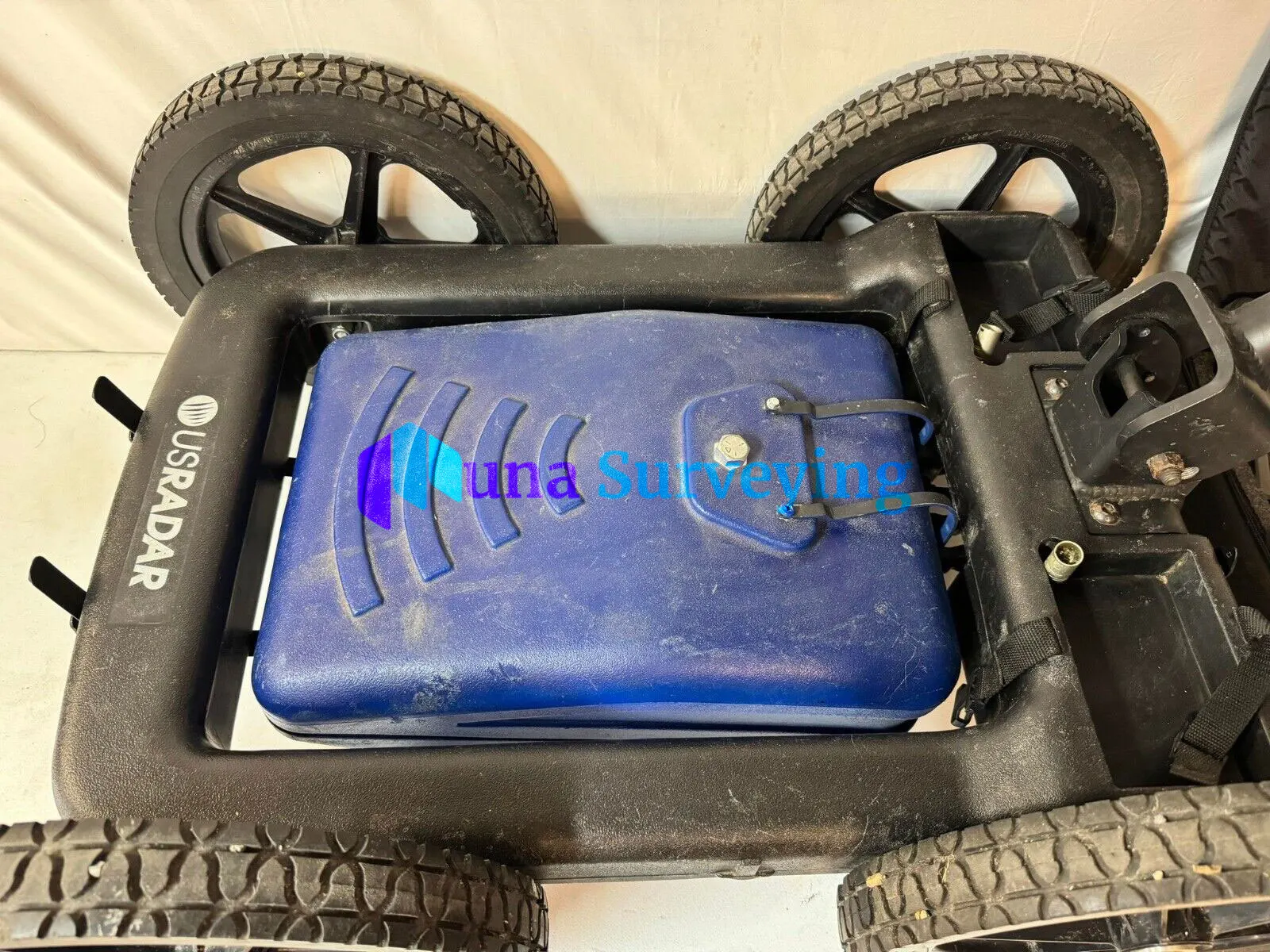

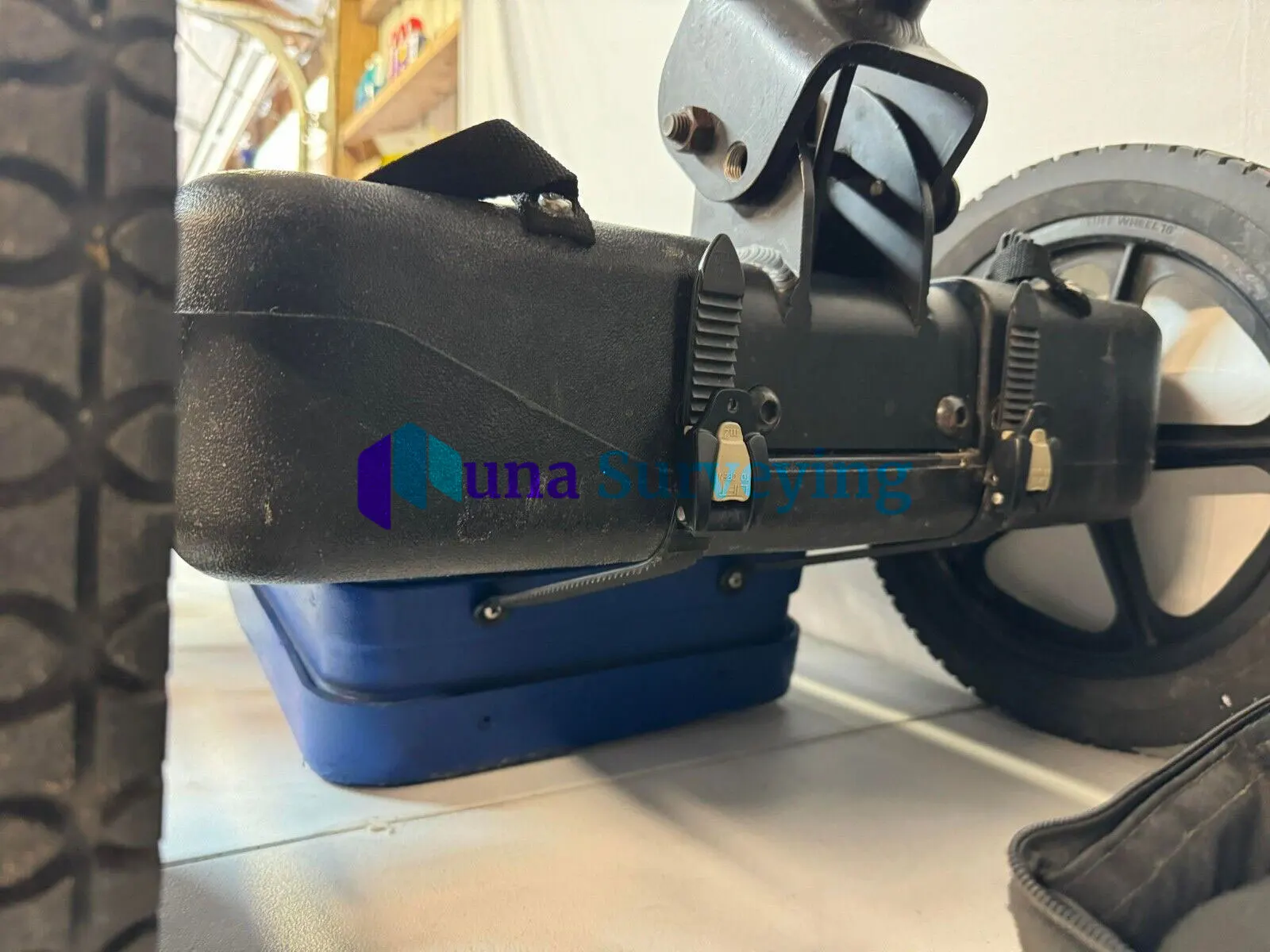

STEPPED PULSE TRIPLE FREQUENCY ANTENNA
- Triple frequency antenna means three scans in one
- Sloped antenna design easily glides over obstacles
- Optional GPS integration

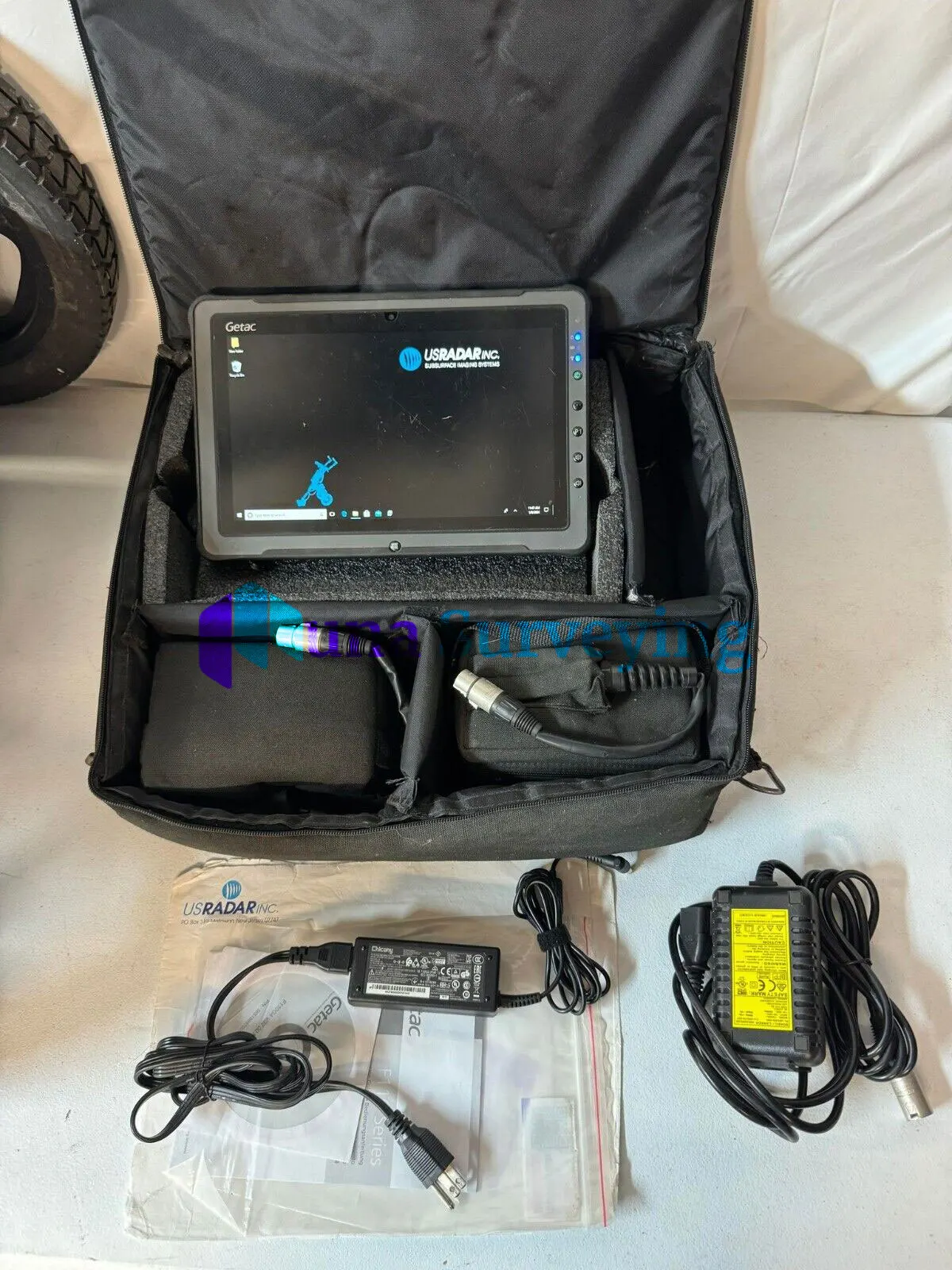

DURABLE, GLARE-RESISTANT TABLET INTERFACE
- Daylight readable, weatherproof Getac tablet interface
- High performance CPU enables real-time data processing
- Built-in 3D view capability
- WiFi supported
- USB, Ethernet, HDMI and Audio ports
HOT SWAPPABLE BATTERY PACKS
- Two hot-swappable battery packs included in each system
- Each battery lasts a total runtime of 8 hours each
- Battery packs have lifespan of several years
GPS INTEGRATION (Optional)
- Optional GPS Pole mount
- Enables GPS to be centered over antenna
- Integrates with most high-end GIS and RTK units
- Optional integration with Google Earth

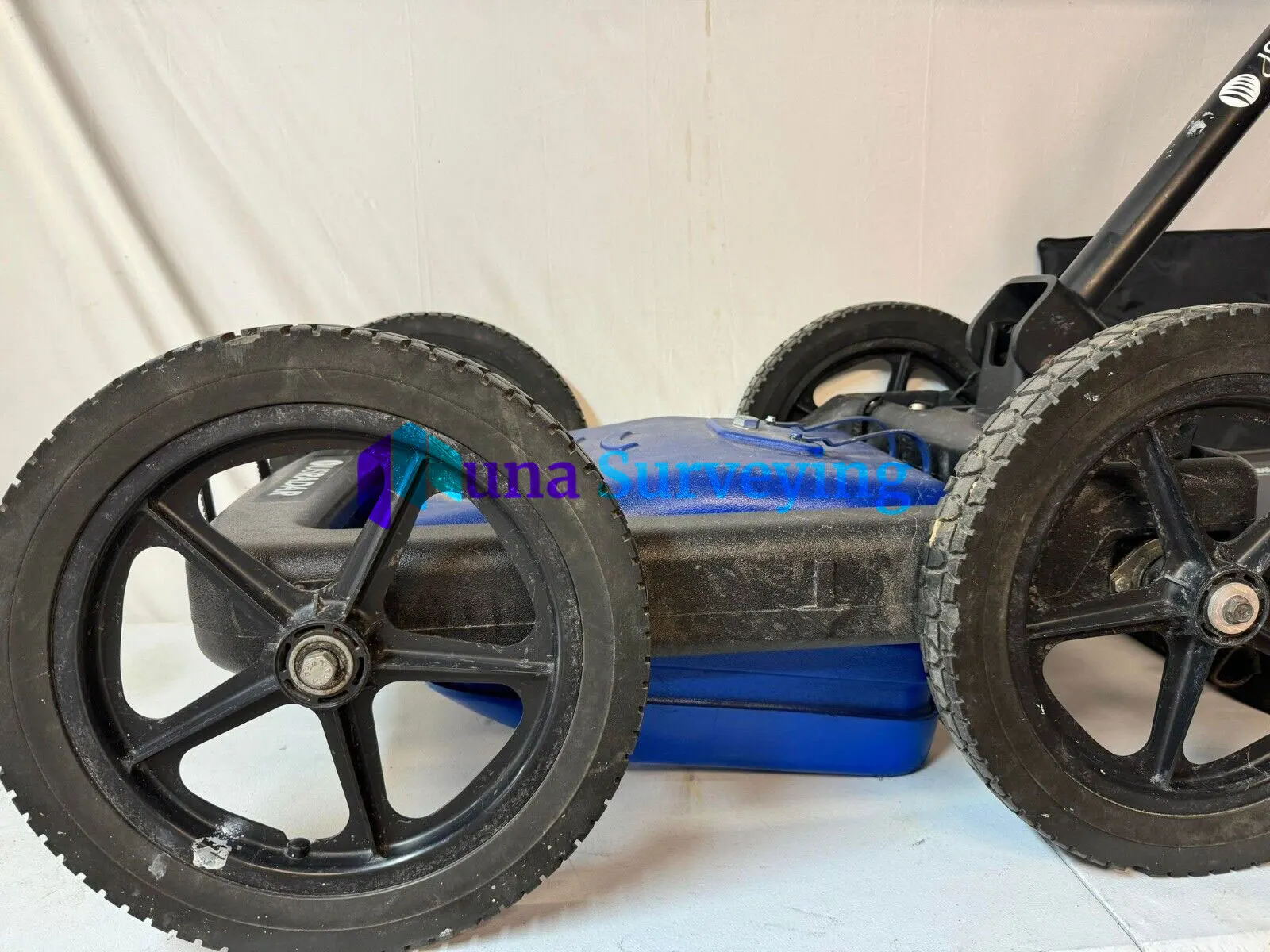

AIRLESS TIRES
- Airless, solid tires that cannot go flat
- Require no maintenance

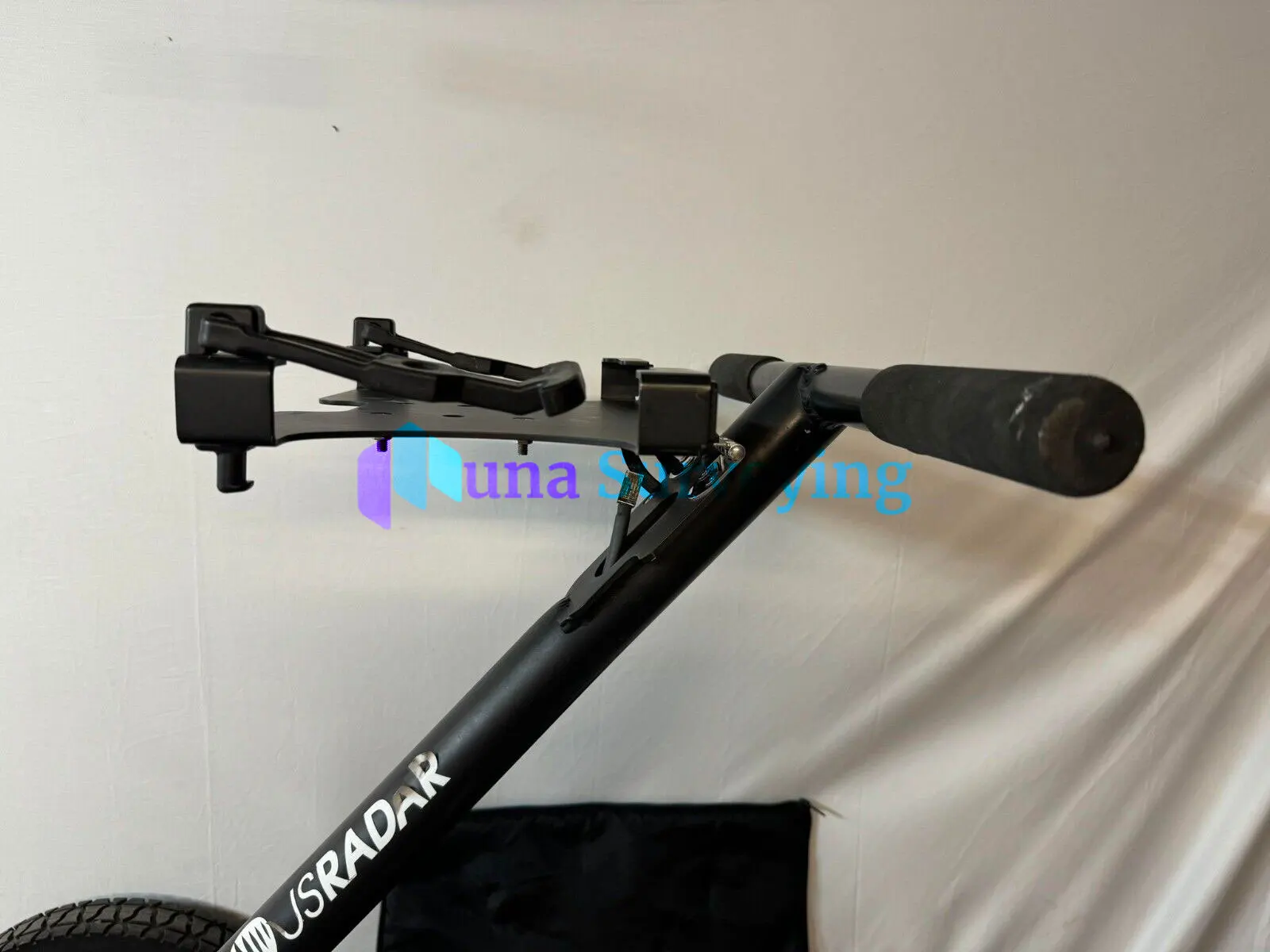

EASY STORAGE
- Folding cart handle and controller tablet mount for easy storage.
WHY TRIPLE FREQUENCY?
Quantum Imager offers dramatically more depth and higher resolution than any other imaging technology on the market. This is due to the narrow frequency range of dual frequency systems. Dual frequency systems also miss out on the ideal mid frequencies for locating utilities.
SPECIFICATIONS
GETAC F110 RADAR CONTROLLER
OS Windows 7 or 10 64-bit
Processor 3rd Generation Intel Core i5 Pro
Durability 4 foot fall arrester, IP65 certification against water and dust
Screen 11.6 in. HD with 10 points of contact
I/O interface Ethernet Port, Charging Port, 1 USB 3.0, HDMI Port, WIFI and Bluetooth
Expansion Options Micro SD or USB Port, RJ45 Ethernet, Dedicated GPS
Communication Wifi, Bluetooth and 4G LTE Optional
Software
Control Software Included
System configuration
A Screen Scan (Oscilloscope Mode)
B Screen Scan (Cross Section View)
C On-Screen Scan (Optional 3D)
Signal Processing in Real Time
Playback of Stored Information
Scan Modes
Maximum typical log scan rate of 390 traces per second
Trigger Modes: Free Run, Timed Interval, Axis Encoder, GPS, Manual
Nominal sampling rate: 650,000,000 samples per second
Maximum resolution: 100 Gigasamples per second
Hardware Time Variable Gain: 45dB
Software Flat Gain: 60dB
Maximum Environmental Specifications
Temperature: -11 °C to 50 °C
Resistance to Moisture and Dust IP65
Radar Hardware Specifications
Total system dynamic range: >130 dB
Receiver dynamic range: 90 dB
Sampling interval: 10ps-6.4
Time range setting interval: 10 ps
Pulse repetition frequency: 0.1-4 Mhz adjustable
Samples per trace: 2-8192, adjustable
Effective Bandwidth: > 4 Ghz
Stacking: automatic
Transmitter: Ultra Wide Band Stepped Triple Frequency
